672435B

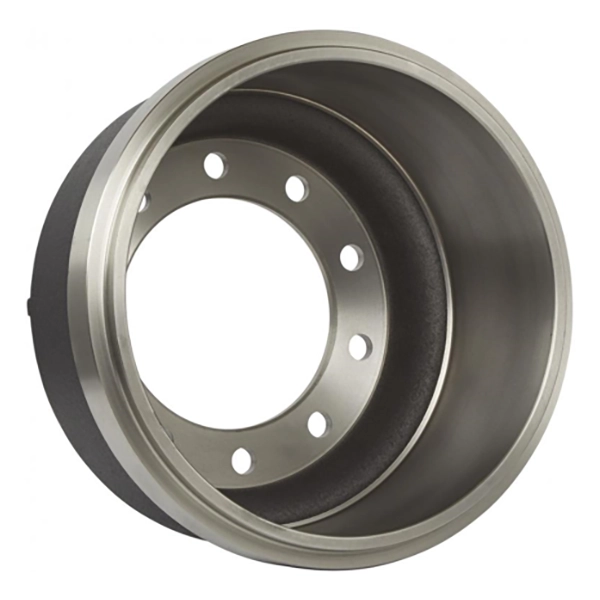

Brake Drum, Cast Iron, 16.50×7.00

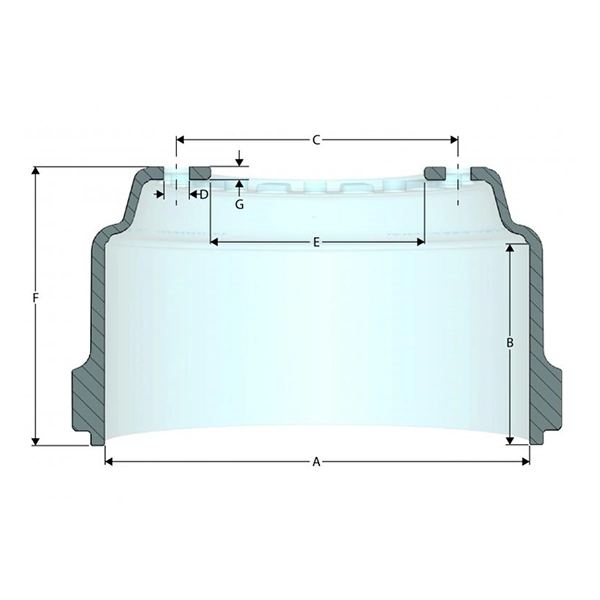

Imperial Measurement

A Brake Surface Diameter: 15.00

B Brake Surface Width: 4.66

C Bolt Circle Diameter: 11.25

D Bolt Hole Size: 1.25

E Pilot Diameter: 8.78

F Overall Depth: 9.18

G Mounting Flange Thickness: 0.50

• Brake Size: 15.00×4.00
• Drum Mount: Outboard
• Finish Weight: 85
• Maximum Wear Diameter: 15.12
• Bolt Holes: 10
• Wheel Type: Disc
• Interchange:
• Gunite: 3800X, Webb: 65548B, KIC: 54294-018, Dayton: HD17M
