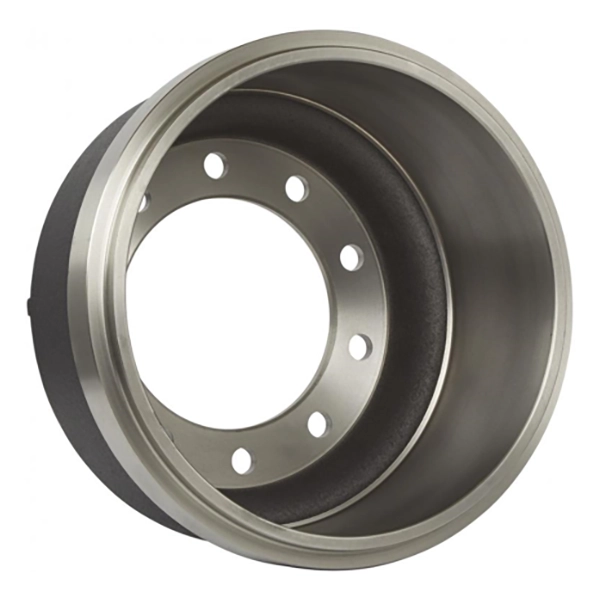

Imperial Measurement

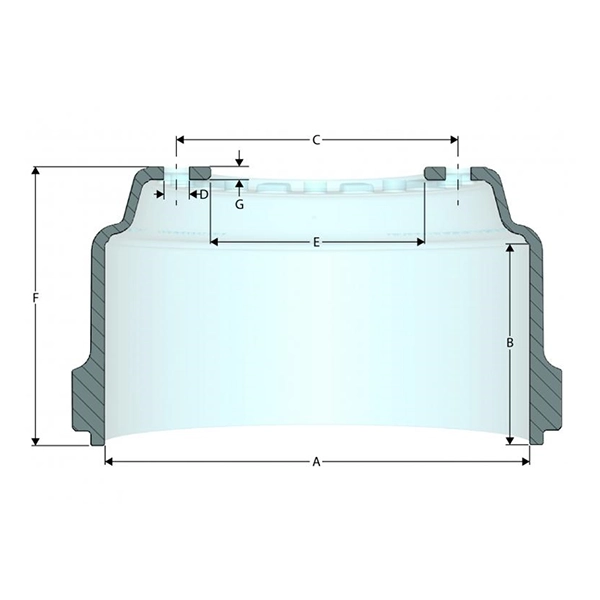

A Brake Surface Diameter: 16.50
B Brake Surface Width: 7.63
C Bolt Circle Diameter: 11.25
D Bolt Hole Size: 0.81
E Pilot Diameter: 8.53
F Overall Depth: 10.59
G Mounting Flange Thickness: 0.44
- Brake Size: 16.50×7.00
- Drum Mount: Outboard
- Finish Weight: 112
- Maximum Wear Diameter: 16.62
- Bolt Holes: 10
- Wheel Type: Disc
- Interchange:
- Gunite: 3166, Webb: 66893F, KIC: 53026-01, Dayton: HD2
