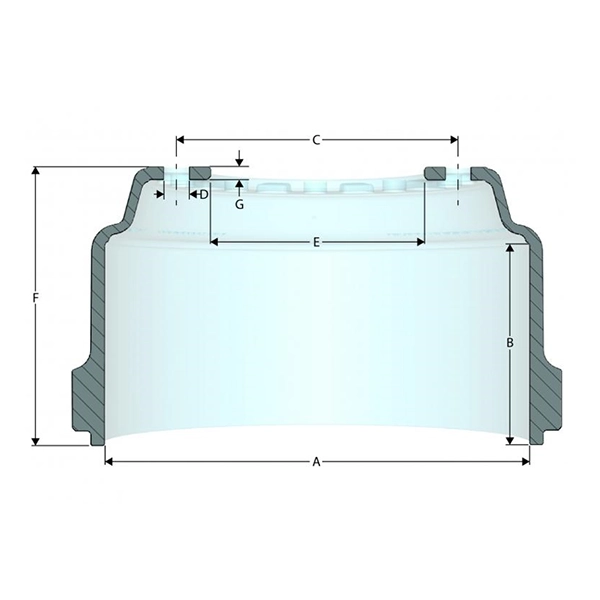

Imperial Measurement
A Brake Surface Diameter: 15.00
B Brake Surface Width: 4.78
C Bolt Circle Diameter: 11.25
D Bolt Hole Size: 1.00
E Pilot Diameter: 8.78
F Overall Depth: 8.79
G Mounting Flange Thickness: 0.50
- Brake Size: 15.00×4.00
- Drum Mount: Outboard
- Finish Weight: 83
- Maximum Wear Diameter: 15.12
- Bolt Holes: 10
- Wheel Type: Disc
- Interchange:
- Gunite: 3721X, Webb: 61527B, KIC: 53075-018, Dayton: HD14M
