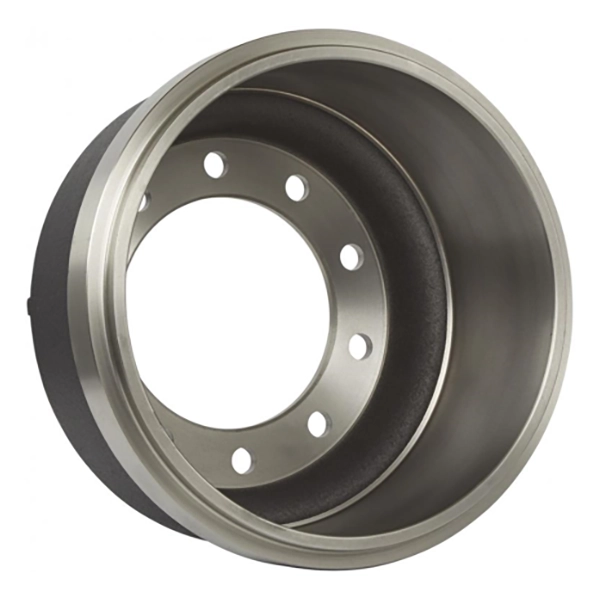

Imperial Measurement

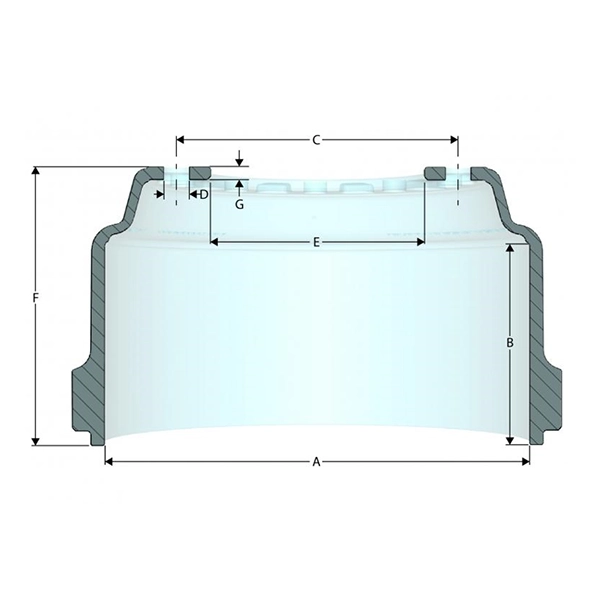

A Brake Surface Diameter: 16.50
B Brake Surface Width: 7.60
C Bolt Circle Diameter: 11.25
D Bolt Hole Size: 1.00
E Pilot Diameter: 8.78
F Overall Depth: 10.56
G Mounting Flange Thickness: 0.50
- Brake Size: 16.50×7.00
- Drum Mount: Outboard
- Finish Weight: 130
- Maximum Wear Diameter: 16.62
- Bolt Holes: 10
- Wheel Type: Disc
- Interchange:
- Gunite: 3576X, Webb: 66661B, KIC: 54261-018, Dayton: HD1SD
