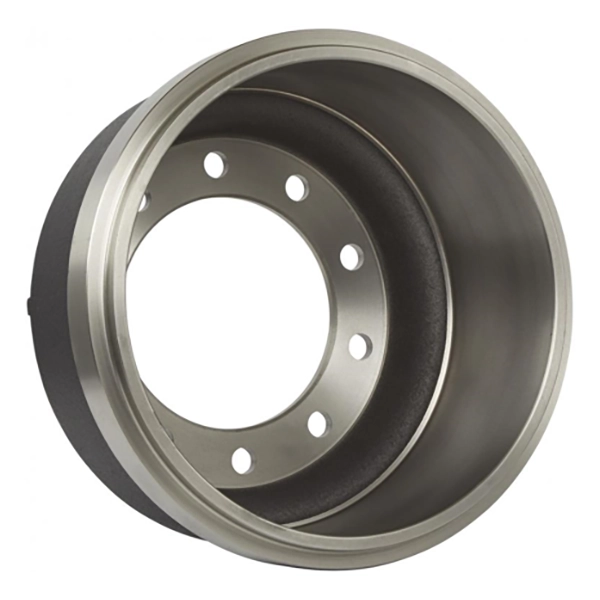

Imperial Measurement

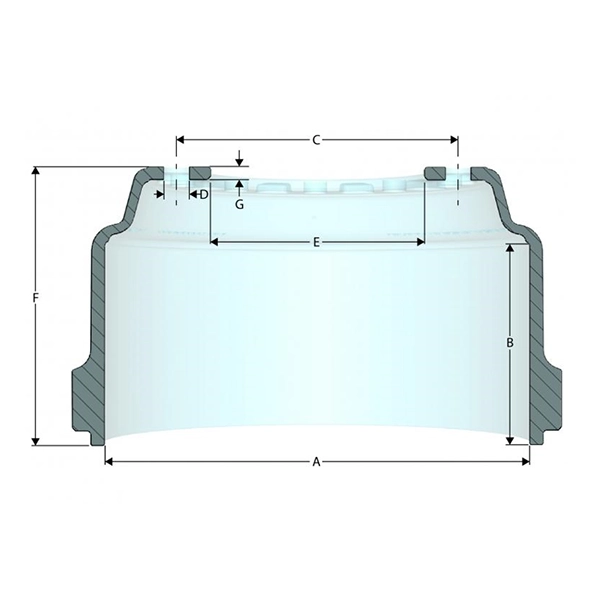

A Brake Surface Diameter: 16.50
B Brake Surface Width: 6.52
C Bolt Circle Diameter: 11.25
D Bolt Hole Size: 1.25
E Pilot Diameter: 8.78
F Overall Depth: 9.74
G Mounting Flange Thickness: 0.62
- Brake Size: 16.50×6.00
- Drum Mount: Outboard
- Finish Weight: 118
- Maximum Wear Diameter: 16.62
- Bolt Holes: 10
- Wheel Type: Disc
- Interchange:
- Gunite: 3687X, Webb: 65152B, KIC: 54248-018, Dayton: HD19M
