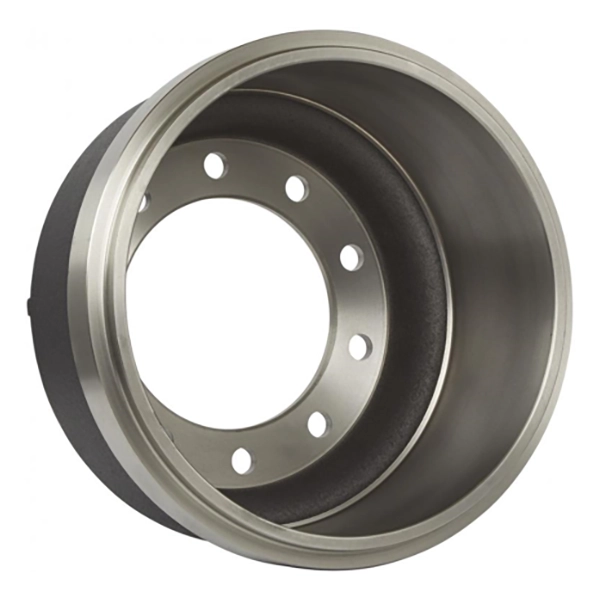

Imperial Measurement

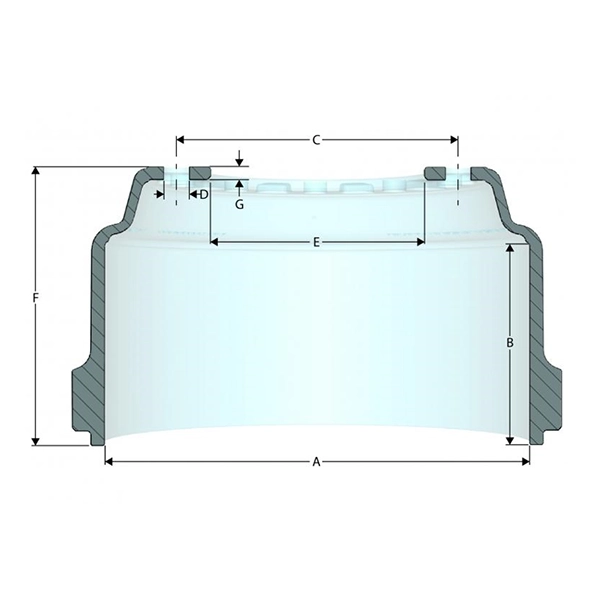

A Brake Surface Diameter: 16.50
B Brake Surface Width: 7.40
C Bolt Circle Diameter: 10.82
D Bolt Hole Size: 1.00
E Pilot Diameter: 9.00
F Overall Depth: 10.30
G Mounting Flange Thickness: 0.50
-
- Brake Size: 16.50×7.00
- Drum Mount: Outboard
- Finish Weight: 110
- Maximum Wear Diameter: 16.62
- Bolt Holes: 8
- Wheel Type: Disc
- Interchange:
- Gunite: 3402, Webb: 66873, KIC: 54202-01, Dayton: HD20
