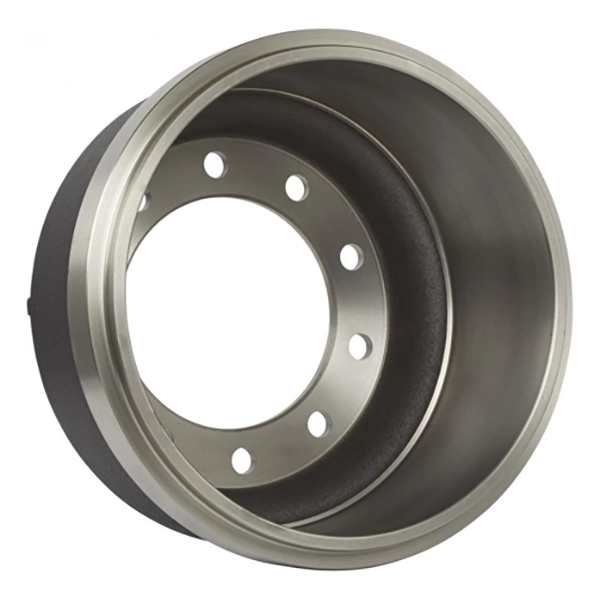

Imperial Measurement

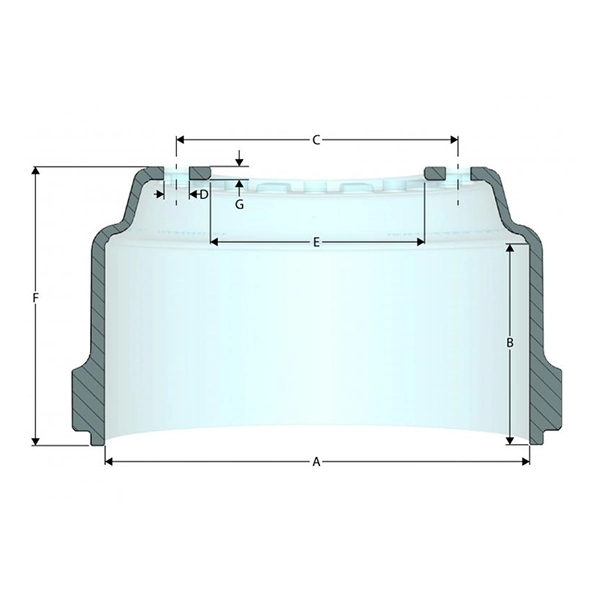

A Brake Surface Diameter: 16.50
B Brake Surface Width: 7.41
C Bolt Circle Diameter: 12.75
D Bolt Hole Size: 0.78
E Pilot Diameter: 11.25
F Overall Depth: 8.46
G Mounting Flange Thickness: 0.56
- Brake Size: 16.50×7.00
- Drum Mount: Inboard
- Finish Weight: 108
- Maximum Wear Diameter: 16.62
- Bolt Holes: 5
- Wheel Type: Spoke
- Interchange:
- Gunite: 3295AX, Webb: 68981B, KIC: 52120-12, Dayton: HD7M
