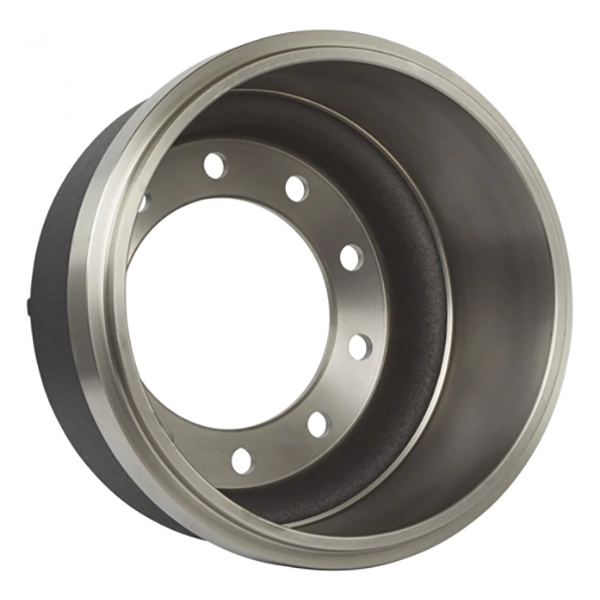

Imperial Measurement

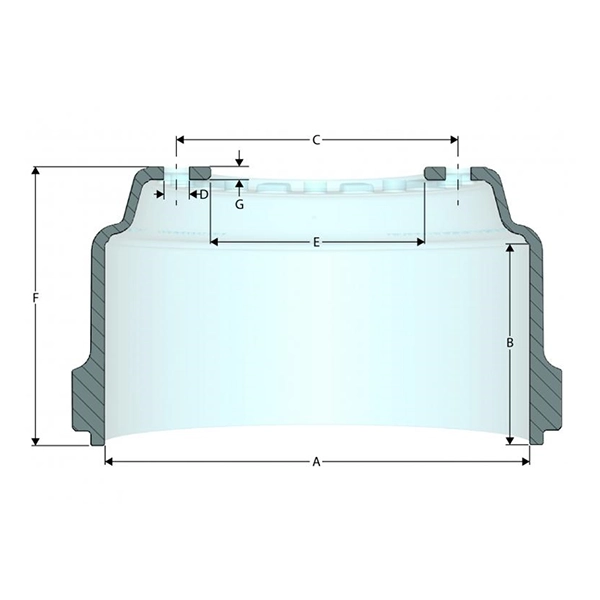

A Brake Surface Diameter: 16.50
B Brake Surface Width: 7.31
C Bolt Circle Diameter: 12.75
D Bolt Hole Size: 0.65
E Pilot Diameter: 11.00
F Overall Depth: 7.93
G Mounting Flange Thickness: 0.41
- Brake Size: 16.50×7.00
- Drum Mount: Inboard
- Finish Weight: 105
- Maximum Wear Diameter: 16.62
- Bolt Holes: 6
- Wheel Type: Spoke
- Interchange:
- Gunite: 8656, Webb: 68897, KIC: 51952-11, Dayton: HD9
