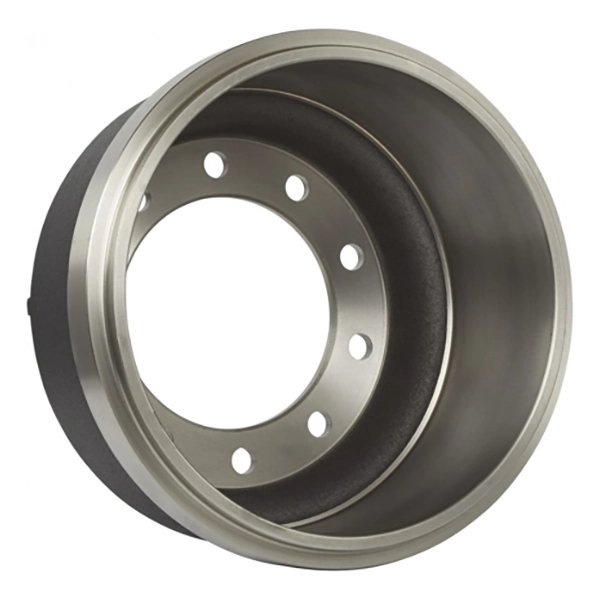

Imperial Measurement

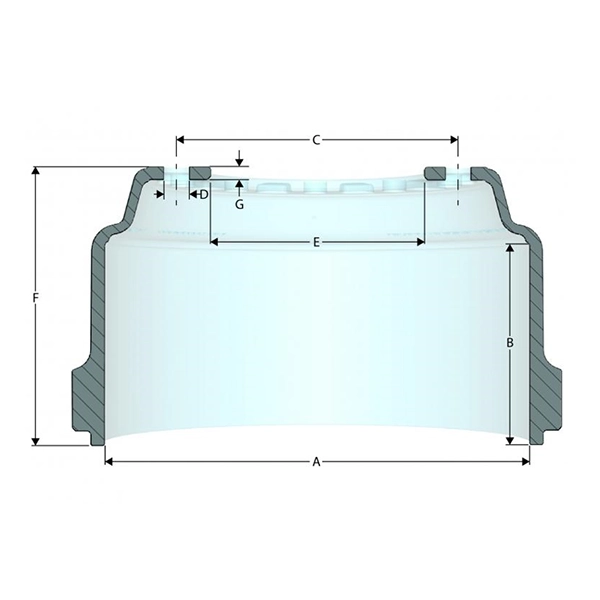

A Brake Surface Diameter: 16.50
B Brake Surface Width: 7.52
C Bolt Circle Diameter: 11.25
D Bolt Hole Size: 0.84
E Pilot Diameter: 9.44
F Overall Depth: 10.74
G Mounting Flange Thickness: 0.59
- Brake Size: 16.50×7.00
- Drum Mount: Outboard
- Finish Weight: 115
- Maximum Wear Diameter: 16.62
- Bolt Holes: 10
- Wheel Type: Disc
- Interchange:
- Gunite: 3120, Webb: 60878, KIC: 52877-11, Dayton: HD12
