Imperial Measurement

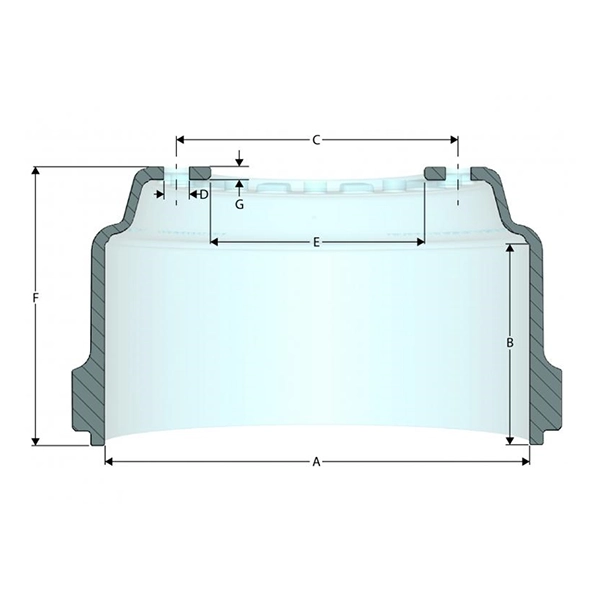

A Brake Surface Diameter: 12.25
B Brake Surface Width: 10.00
C Bolt Circle Diameter: 10.82
D Bolt Hole Size: 1.00
E Pilot Diameter: 9.00
F Overall Depth: 11.22
G Mounting Flange Thickness: 0.50
- Brake Size: 12.25×7.50
- Drum Mount: Outboard
- Finish Weight: 88
- Maximum Wear Diameter: 12.37
- Bolt Holes: 8
- Wheel Type: Disc
- Interchange:
- Gunite: 3887, Webb: 63680, KIC: 54244-01, Dayton: HD27
