Imperial Measurement

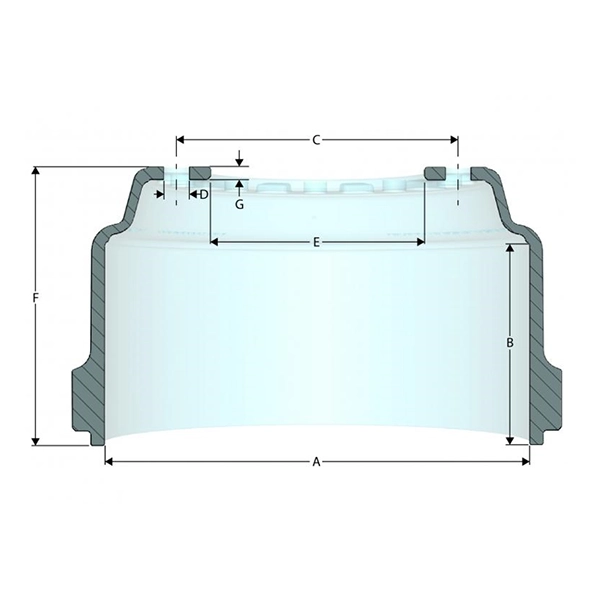

A Brake Surface Diameter: 18.00
B Brake Surface Width: 7.50
C Bolt Circle Diameter: 12.75
D Bolt Hole Size: 0.64
E Pilot Diameter: 11.00
F Overall Depth: 8.24
G Mounting Flange Thickness: 0.50
- Brake Size: 18.00×7.00
- Drum Mount: Inboard
- Finish Weight: 123
- Maximum Wear Diameter: 18.12
- Bolt Holes: 6
- Wheel Type: Spoke
- Interchange:
- Gunite: 3197X, Webb: 61788, KIC: 54203-01, Dayton: HD11
