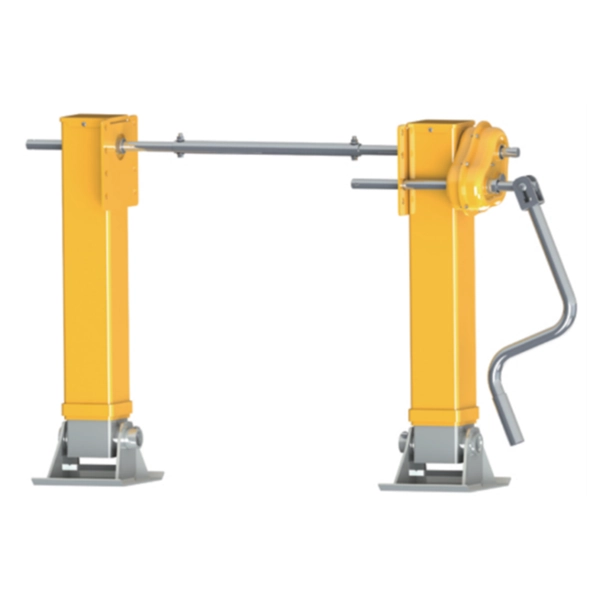

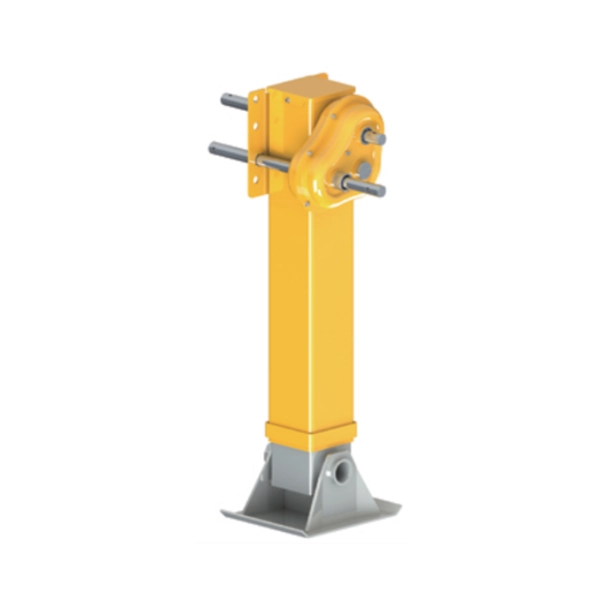

FLXLG130F

FleetX Landing Gear that Exceeds the Standards for Strength, Durability, and Ease of Lift

Enquire Now

Categories Landing Gear, Trailer

Additional information

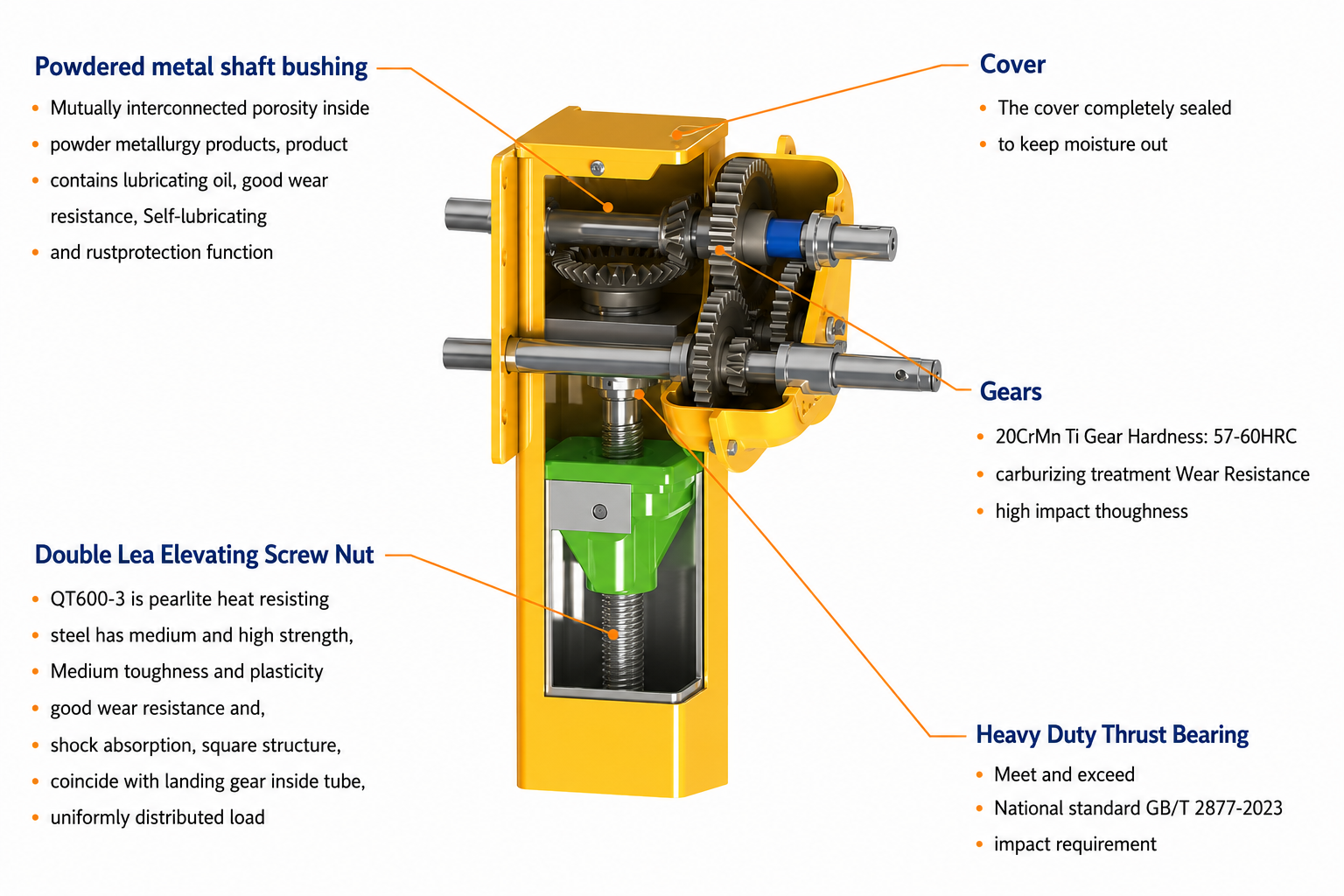

Design Features

Meet and Exceeds National standard GB/T267772023 impact requirement
Approved by DOT Certification
Replaceable sushion foot for easy repair when worn adatpt to various complicated road conditions
Gearbox is completely filled with low temparature grease
Gear material 20CrMnTi, wear resistance, high impact toughness
Spcial seal structure, engineered using latest technology to ensure the products lastlonger in service
The shaft is treated with electrophorectic paint, resists corrosion

Durability for Robust Performance

Repair Kits	Part Number
Gear Box Repair Kit	FLX-GBRK-67130-F
Bevel & Pion Repair Kit	FLX-BPRK-67130-F
Spur & Idler Repair Kit	FLX-SIRK-67130-F

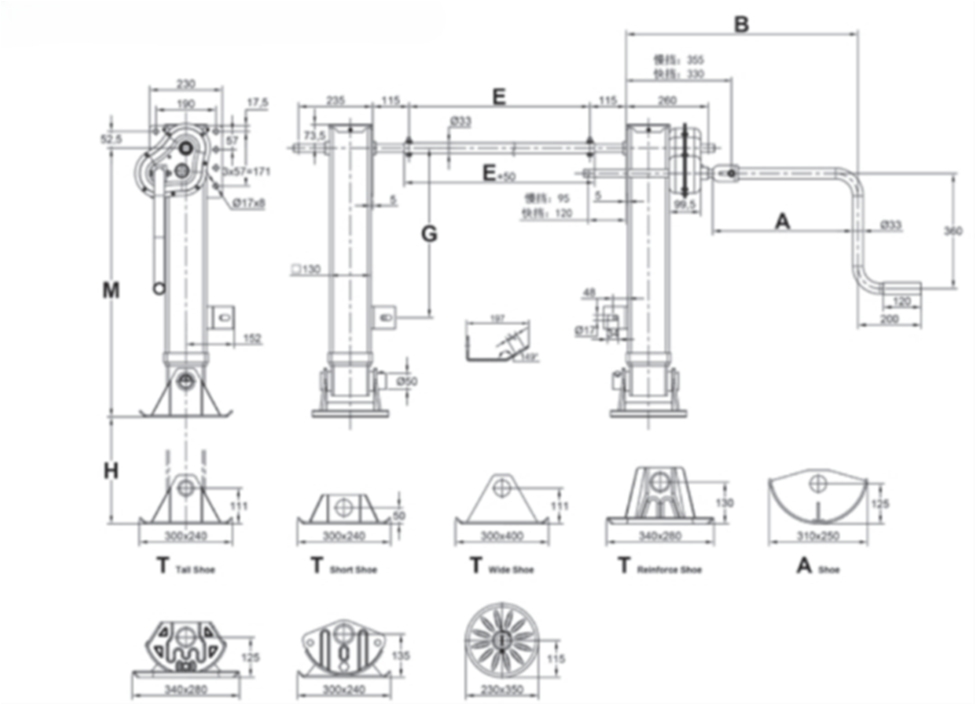

Specification Parameter

MODEL	SHOE	H (mm / in)	M (mm / in)	G (mm / in)	HIGH GEAR	LOW GEAR	TRAVEL MAX	CAPACITY	STATIC LOAD
FLXLG130F/280	T	280 / 11.02″	640 / 25.20″	380 / 14.96″	5.66mm/r	0.81mm/r	280mm / 11.02″	28T/Pair	80T/Pair
FLXLG130F/380	T	380 / 14.96″	740 / 29.13″	430 / 16.93″	5.66mm/r	0.81mm/r	380mm / 14.96″	28T/Pair	80T/Pair
FLXLG130F/480	T	480 / 18.90″	840 / 33.07″	530 / 20.87″	5.66mm/r	0.81mm/r	480mm / 18.90″	28T/Pair	80T/Pair
FLXLG130F/530	T	530 / 20.87″	890 / 35.04″	550 / 21.65″	5.66mm/r	0.81mm/r	530mm / 20.87″	28T/Pair	80T/Pair

Landing Gear Ordering Code

Travel		Mounting		Axle Type		Foot Type
No.	Distance (mm/in)	No.	Description	No.	Type	No.	Foot Type	Description (H-W-L)
1	280 / 11.02″	A	Universal	0	No Axle	T1	Short Shoe	1.97″x9.45″x11.81″ (50mmx240mmx300mm)
2	380 / 14.96″	B	Inside	1	Standard	T2	Tall Shoe	4.37″x9.45″x11.81″ (111mm-240mm-300mm)
3	480 / 18.90″	C	Outside	2	Solid Axle	T3	Wide Shoe	4.37″x15.75″x11.81″ (111mm-400mm-300mm)
4	530 / 20.87″	D	I-Beam	SP	Special	T4	Reinfore	5.19″x11.02″x13.39″ (130mm-280mm-340mm)
SP	Special	SP	Special			A5	Special
