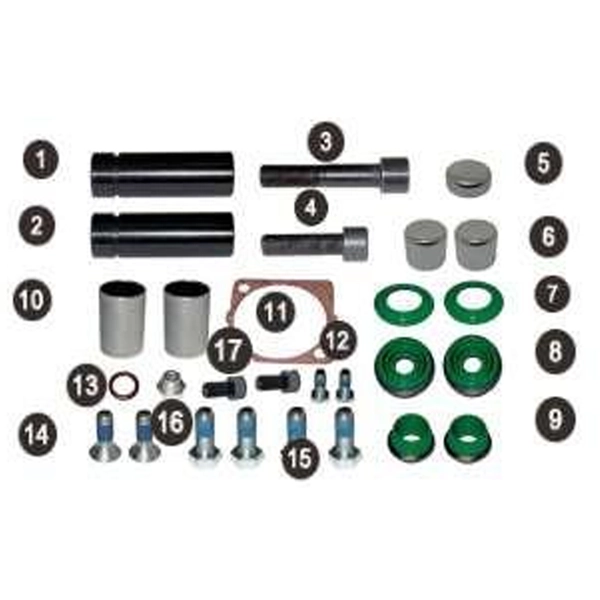

Additional information
| No. |
Description |
Dimension |
Pcs. |
| 1 |
Guide Pin Long |
32 × 97.5 mm |
1 |
| 2 |
Guide Pin Long |
32 × 97.5 mm |
1 |
| 3 |
Bolt Long |
M16 × 1.5 × 80 mm |
1 |
| 4 |
Bolt Short |
M16 × 1.5 × 55 mm |
1 |
| 5 |
Steel Cap |
37 × 15 mm |
1 |
| 6 |
Steel Cap |
42 × 29 mm |
2 |
| 7 |
Seal |
– |
2 |
| 8 |
Piston Dust Excluder |
– |
2 |
| 9 |
Guide Pin Dust Excluder |
– |
2 |
| 10 |
Plain Bush |
36 × 32 × 55 mm |
2 |
| 11 |
Gasket |
– |
1 |
| 12 |
Cover Plate Screw |
M8 × 1.25 × 20 mm |
2 |
| 13 |
Washer |
19 × 13 mm |
1 |
| 14 |
Plate Screw |
M12 × 1.75 × 23 mm |
2 |
| 15 |
Plate Screw |
M12 × 1.75 × 29 mm |
4 |
| 16 |
Plug Screw |
– |
1 |
| 17 |
Piston Screw |
M10 × 1.5 × 20 mm |
2 |
